Turbomachinery components study

Low speed wind tunnel

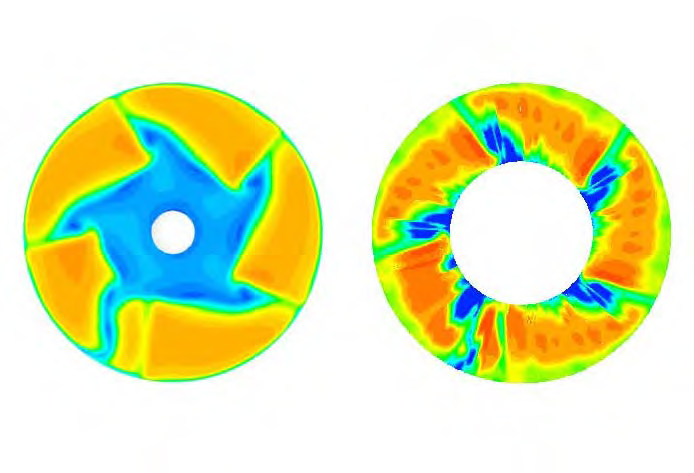

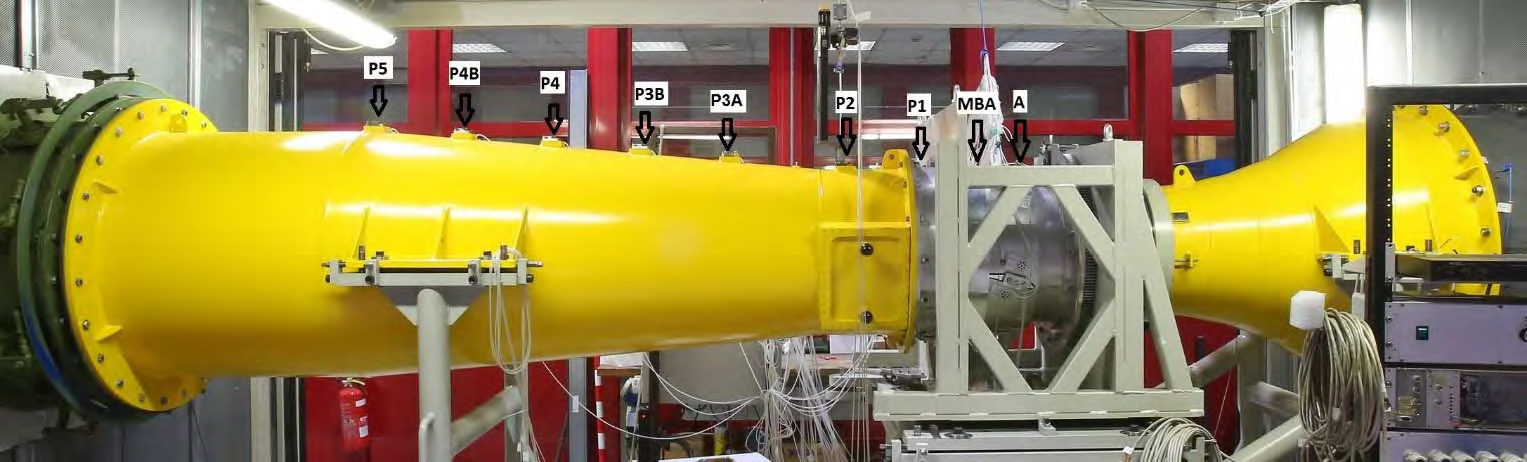

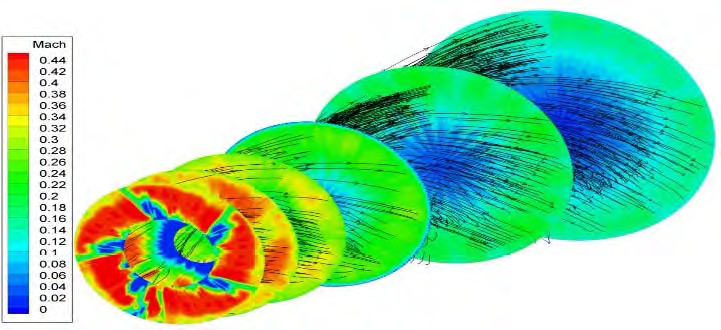

Steady measurements of the flow downstream turbine struct: study of the flow evolution inside the diffuser with the aim to investigate the possible perturbation on turbine functioning.

Measure carried out with 5-hole probe, appositely designed for this application: steam lenght aprroximatively 800mm mounted on linear stage with 500mm of available lenght travel.

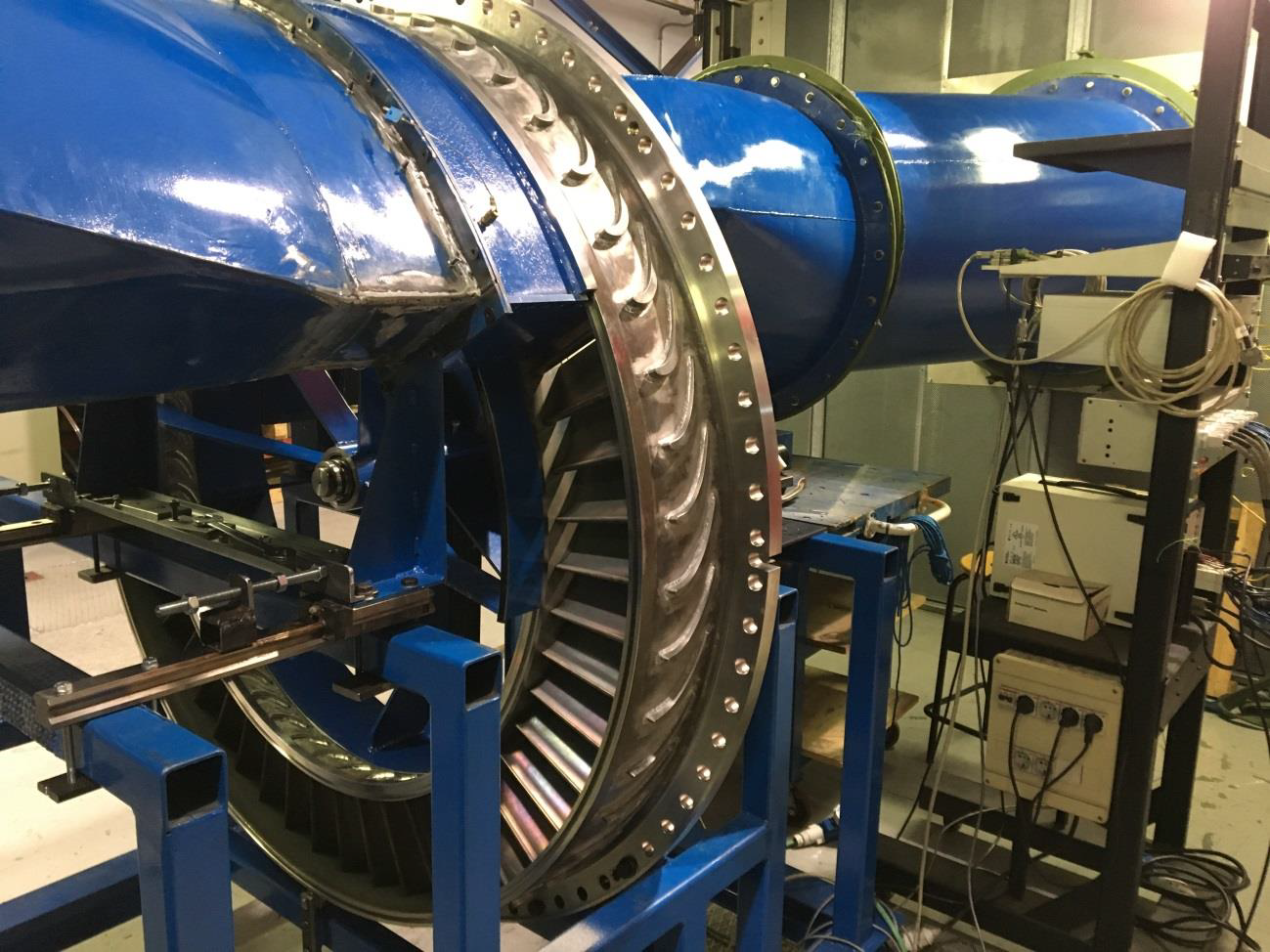

Steady measurements of the flow field downstream of a nozzle.

In this application is measured the uniformity of the flow to evaluate the right mechanical execution of the nozzle.
